Descripción
| Connectors / Interfaces | |
|---|---|
| Constant Power | Screw connector |
| Auxilary Power | Screw connector |
| Horn Alert | Screw connector |
| Audio Mute | Screw connector |
| Microphone | 2.5mm mono |
| Speaker | 3.5mm mono |
| Intelligent Handset | RJ45 DPL BUS |
| Data Port | RS232 Serial Interface |
| Transceiver | D25 |
| Kit Contents | |
|---|---|

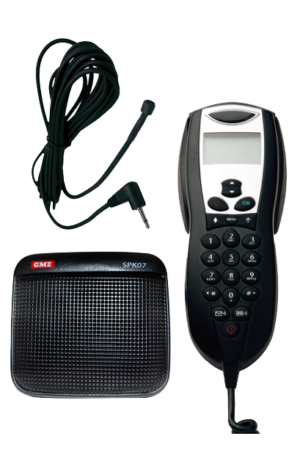

| Intelligent Handset | x |
| CD – Beam Management System, AT Commands, Manual | x |
| Mounting adhesive / velcro | x |
| Cable assemblies: DC cables, interface cables | x |

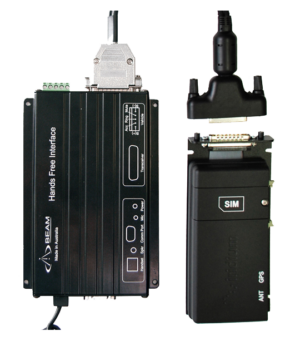

| Hands-free & power interface | x |
| Iridium 9522B Transceiver module Main terminal | x |
| User & Installation Manual | x |
| Data Cable | x |
| Speaker & Microphone | x |
| Power Specifications | ||
|---|---|---|
| Transmit – inc handset | 0.63 | 0.23 |
| Standby – inc handset | 0.33 | 0.14 |
| Power Consumption (AMPS) | 12 V DC | 24 V DC |
| Power Input Voltage | 11 – 32 V DC | |
| Environmental Specifications | ||
|---|---|---|
| Operating Range | -15 to +55 °C | +5 to +131°F |
| Storage | -30 to +85 °C | -22 to +185 °F |
| Humidity | 85% non condensing | |
| Physical Specifications | ||
|---|---|---|
| Dimensions – inches | 9522B w/ Mounting Bracket 7.29 x 3.20 x 1.17 |
HFI 7.32 x 5.11 x 1.07 |
| Dimensions – mm | 9522B w/ Mounting Bracket 185.2 x 81.4 x 29.8 |
HFI 186 x 130 x 27.3 |
| Weight | 1.45kg | 0.66lbs |
